AP582

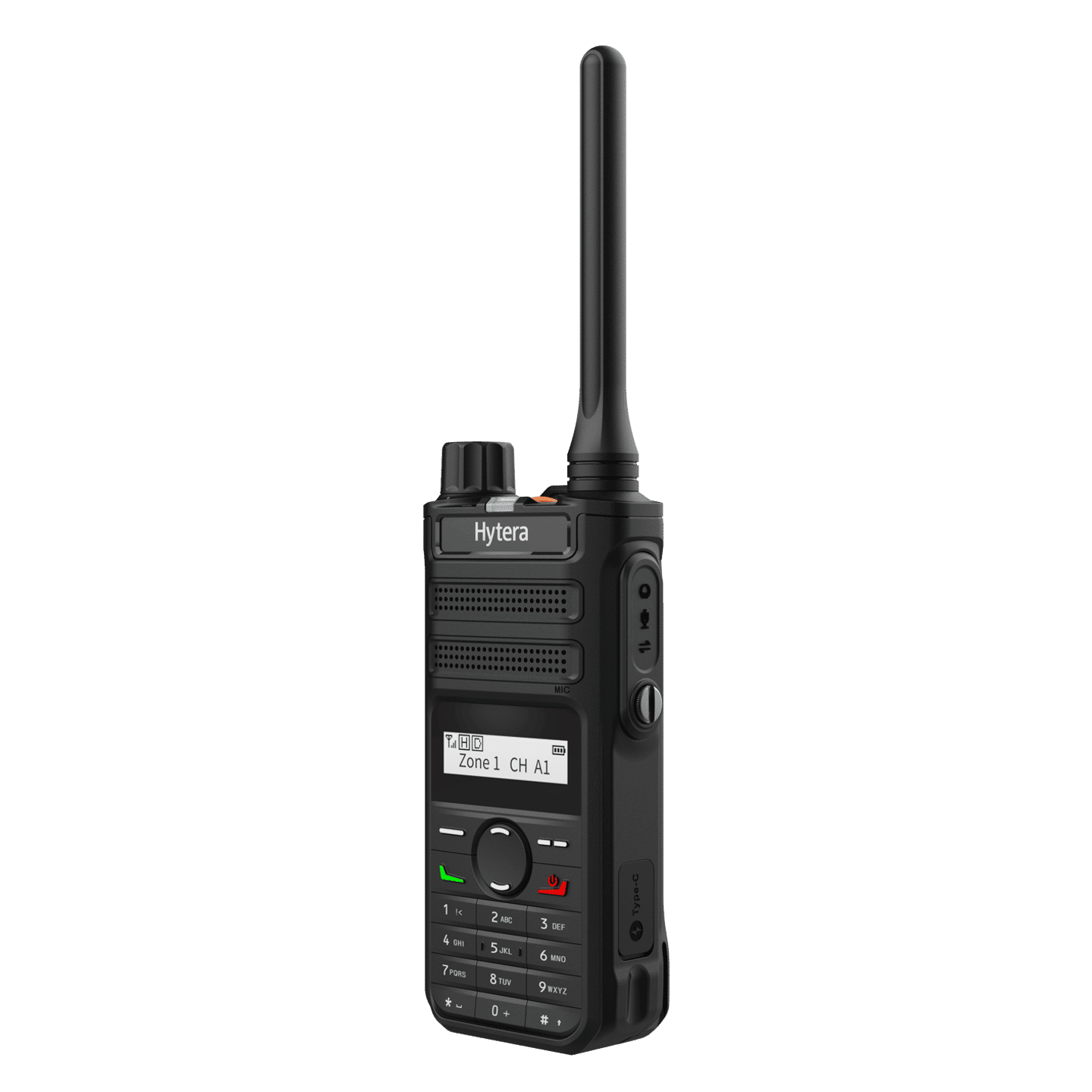

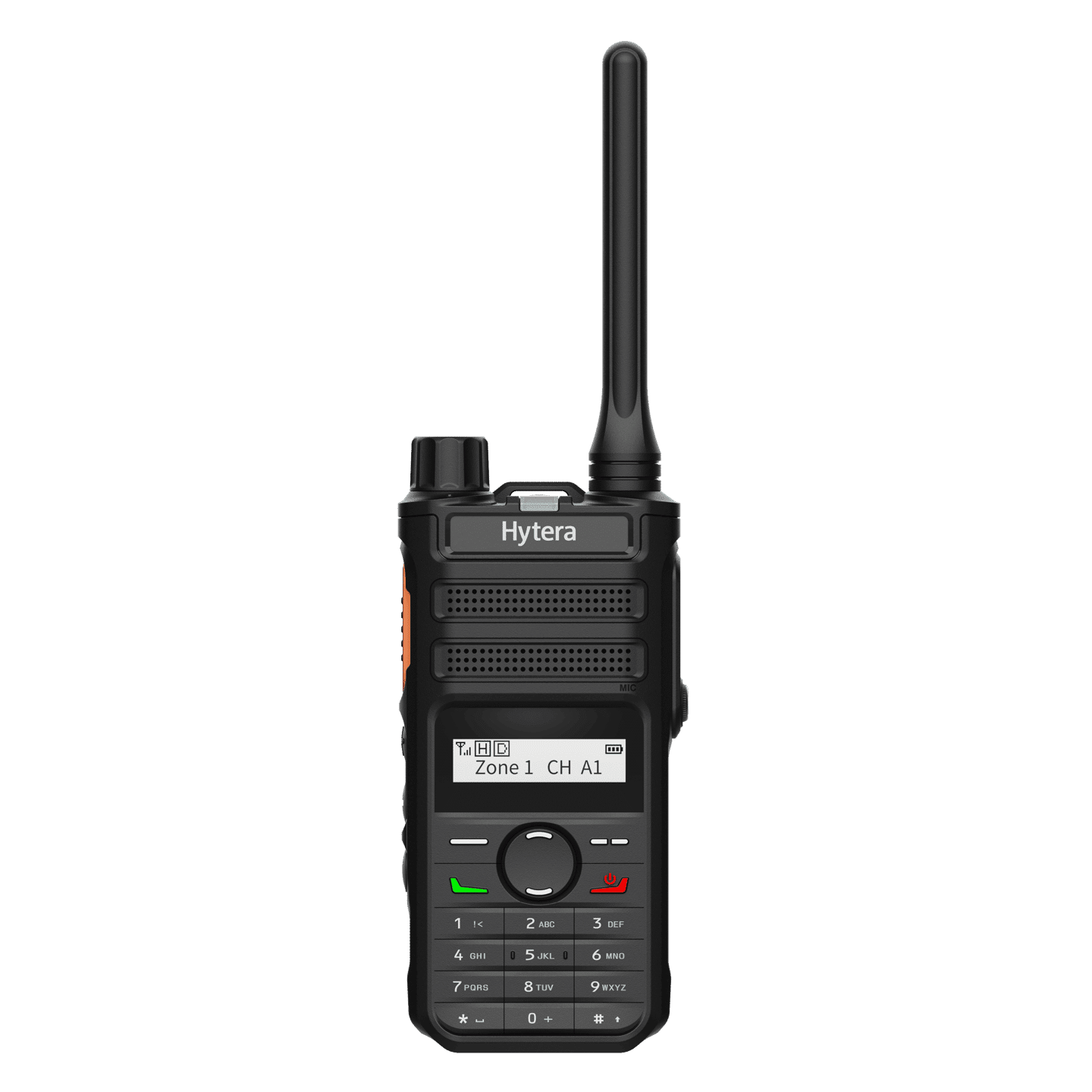

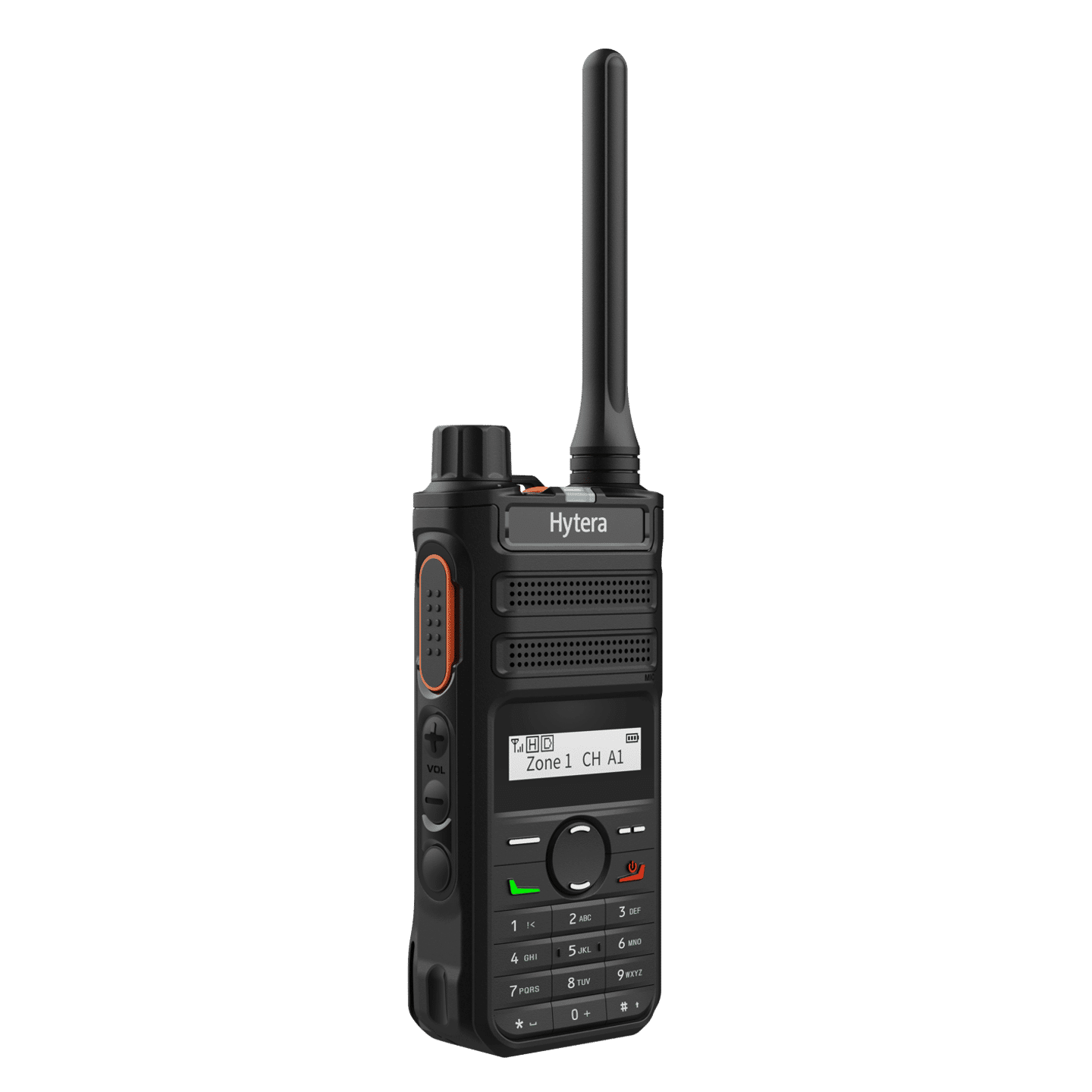

AP582 Two-Way Business Analog Radio

Two-Way Business Analog Radio

Handheld RadiosUHF Radios

The AP582 business radio is the perfect choice for instant communication. With a 3W speaker, the compact and light AP5 series can deliver loud and clear audio that allows you to hear and be heard in background noise.

Get a Quote

Key Features

SCRAMBLER icon

SCRAMBLER

Protects your voice communications against casual listeners. Inverts and restores the frequency spectrum of a certain frequency point to encrypt the voice

TALK AROUND icon

TALK AROUND

Allows you to continue communication in direct mode when the repeater malfunctions or the radio is out of the coverage of the repeater

PSEUDO TRUNKING icon

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, communication slots can be shared to improve capacity usage with transmissions either direct to devices or to repeater.

ENCRYPTION icon

ENCRYPTION

Enables the radio to encrypt the voice and data with the encryption key to prevent eavesdropping.

TIME-OUT TIMER (TOT) icon

TIME-OUT TIMER (TOT)

This feature allows the radio to automatically stop transmission when the preset transmission period expires, improving channel utilization efficiency.

SCAN icon

SCAN

Allows you to listen to activities on other channels, keeping track of your colleagues

HOWLING SUPPRESSION icon

HOWLING SUPPRESSION

With the howling suppression algorithm, no feedback howling occurs between two radios within 3 meters.

FAST CHARGING icon

FAST CHARGING

With the 10 W standard power adapter, the AP58X can be charged from 0% to 100% in only 1.8 hours, and has a USB Type-C port for charging.

VOX icon

VOX

Allows you to speak without pressing and holding the PTT key, freeing your hands.

THINNER AND LIGHTER icon

THINNER AND LIGHTER

Optimized body construction of 230g in weight, 29.5 mm in depth

Technical Specifications

Frequency Range400-470MHz 136-174MHz
Channel Capacity128
Zone Capacity8
Channels Per Zone16
Channel Spacing12.5kHz/20kHz/25kHz
Operating Voltage7.4V (rated)
Battery Life (5/5/90 Duty Cycle, High TX Power)12h (1500mAh) 16h (2000mAh)
Dimensions (H x W x D)115*55*29.5mm
Weight (with antenna & battery)230g±5g
Display1.44 inch LCD
BT (optional)BT 5.0 BLE+EDR
Operating Temperature-30℃ to +60℃
Storage Temperature-40℃ to +85℃
ESDIEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
IP RatingIEC60529-IP54 (IP67 optional)
HumidityMIL-STD-810 G
Shock and VibrationMIL-STD-810 G
Sensitivity0.18μV (12dB SINAD)
Hum and Noise[email protected]; 43dB@20kHz; 45dB@25kHz
Rated Audio Power Output1W
Rated Audio Distortion≤3%
Audio Response+1~-3dB
RF Power OutputVHF: 5W / 1W UHF: 4W / 1W
FM Modulation[email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz
Modulation Limiting±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz
Conducted/Radiated Emission-36dBm<1GHz; -30dBm>1GHz
