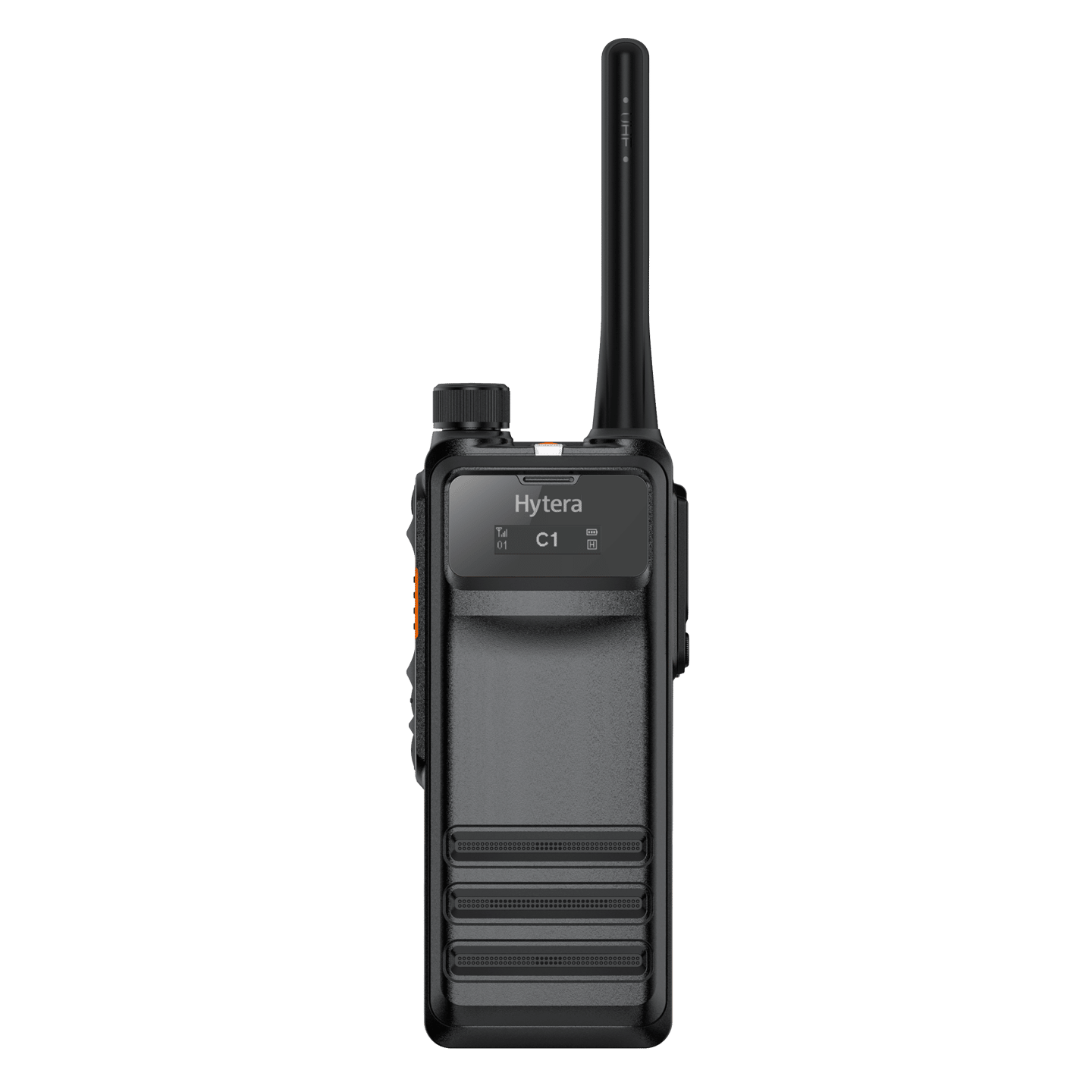

HP702 UL913 Intrinsically Safe Radio
H-Series Intrinsically Safe DMR Two-Way Radio with OLED Display and Optional GPS and Bluetooth
The Hytera HP702 UL913 H-Series Intrinsically Safe DMR radios are state-of-the-art in creative style and functionality that elevates the industrial standard in professional two-way radios. The HP702 UL913 provides a more efficient experience with loud and clear audio, longer battery life, intuitive user interface, extended range, and ruggedness. The HP702 features an OLED display, a 24+ hour Lithium Polymer battery, GPS, extended range, and industry-leading audio performance. The HP702 UL913 H-Series radios empower industrial, mining, and energy production employees with safe, efficient, and reliable communications.
Key Features
UL913 CERTIFIED
HP702 UL913 radios, batteries, and accessories are certified for use in hazardous areas with explosive gas and dust.
HIGHER LEVEL OF RUGGEDNESS
The HP702 UL913 radios are fully compliant with the IP68 and MIL-STD- 810 G standards. They are dust proof, impervious to water jets, submersible to a depth of 2 meters for 4 hours, and can stand up to drop shock testing at 2 meters. The anti-magnetic speaker does not attract magnetic metal dust and shavings.
UL913 CERTIFIED
HP702 UL913 radios, batteries, and accessories are certified for use in hazardous areas with explosive gas and dust.
HIGHER LEVEL OF RUGGEDNESS
The HP702 UL913 radios are fully compliant with the IP68 and MIL-STD- 810 G standards. They are dust proof, impervious to water jets, submersible to a depth of 2 meters for 4 hours, and can stand up to drop shock testing at 2 meters. The anti-magnetic speaker does not attract magnetic metal dust and shavings.
LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through a large 36mm forward-facing optimized speaker that provides up to 93dB of loudness, and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.
ENHANCED WORKER SAFETY
The HP702 UL913 radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.
LOUDER AND CLEARER AUDIO
Hytera provides industry-leading audio quality through a large 36mm forward-facing optimized speaker that provides up to 93dB of loudness, and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.
ENHANCED WORKER SAFETY
The HP702 UL913 radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.
LONGER BATTERY LIFE
The latest in lithium polymer technology is used to power the HP702 radios for excellent performance. The UL913 certified battery delivers a shift life of over 24 hours on high transmit power with a duty cycle of 5/5/90.
CLEAR AND BRIGHT DISPLAY
The HP702 UL913 features a 0.91-inch OLED display that shows the channel, signal strength, power status, power level, and BT status.
LONGER BATTERY LIFE
The latest in lithium polymer technology is used to power the HP702 radios for excellent performance. The UL913 certified battery delivers a shift life of over 24 hours on high transmit power with a duty cycle of 5/5/90.
CLEAR AND BRIGHT DISPLAY
The HP702 UL913 features a 0.91-inch OLED display that shows the channel, signal strength, power status, power level, and BT status.
ENHANCED GPS LOCATION TRACKING
The HP702 UL912 radios with optional GPS can report current location information to other radios, the dispatcher, or thirdparty applications in real time, enhancing the efficiency of visualized dispatch applications.
HIGHER SECURITY
Supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses the secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.
ENHANCED GPS LOCATION TRACKING
The HP702 UL912 radios with optional GPS can report current location information to other radios, the dispatcher, or thirdparty applications in real time, enhancing the efficiency of visualized dispatch applications.
HIGHER SECURITY
Supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses the secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.
BLUETOOTH AND MICROSD CARD
Optional built-in Bluetooth enables connectivity to wireless accessories. The MicroSD card provides additional capabilities like voice recording.
MULTI-SYSTEM OPERATION
The HP702 UL913 radios can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.
BLUETOOTH AND MICROSD CARD
Optional built-in Bluetooth enables connectivity to wireless accessories. The MicroSD card provides additional capabilities like voice recording.
MULTI-SYSTEM OPERATION
The HP702 UL913 radios can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and DMR Simulcast Systems.
EXTENDED COVERAGE AND CONNECTIVITY
The HP702 UL913 radios extend radio range through increased Tx power efficiency, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs.
GREATER CALLING FLEXIBILITY
A variety of calling modes provides the flexibility to communicate with any or all users. The HP702 UL913 radios support Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks). Have Questions?We're Here to Help
EXTENDED COVERAGE AND CONNECTIVITY
The HP702 UL913 radios extend radio range through increased Tx power efficiency, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs.
GREATER CALLING FLEXIBILITY
A variety of calling modes provides the flexibility to communicate with any or all users. The HP702 UL913 radios support Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), All Call (broadcast call to all radios, transmit only), and Telephone Calls (requires connectivity to PSTN, PABX or SIP networks). Have Questions?We're Here to Help
Technical Specifications
| Frequency Range | UHF 350-470MHz , VHF 136-174MHz |
| Channel Capacity | 1,024 Channels (512 Analog, 512 Digital) |
| Zone Capacity | 64 Zones with 256 Channels per Zone |
| Channel Spacing | 12.5kHz / 20kHz / 25kHz |
| Operational Voltage | 7.4V (Rated) |
| Battery | 2850mAh Li-Ion Polymer UL 913 certified |
| Battery Life (5/5/90) | HP702 UL913: 25 Hours, 29 Hours GPS disabled |
| Weight (with antenna and battery) | HP702 UL913: 13oz (369g) |
| Dimensions (H x W x D) | 5 3/16” x 2 5/32” x 1 7/16” (132 x 55 x 36.5mm) without antenna |
| Frequency Stability | ± 0.5ppm |
| Antenna Impedance | 50Ω |
| Display | HP702 UL913: OLED 0.91” Display |
| Bluetooth | BT 5.0 BLE+EDR |
| Time to First Fix Cold Start | <60 Seconds (Typical TTFF) |
| Time to First Fix Hot Start | <10 Seconds (Typical TTFF) |
| Horizontal Accuracy | <5 meters |
| Digital Sensitivity | 0.18μV (BER 5%) |
| Analog Sensitivity | 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD) |
| Adjacent Selectivity | TIA-603: [email protected], 70dB@20/25kHz ETSI: [email protected], 70dB@20/25kHz |
| Spurious Response Rejection | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
| Intermodulation | TIA-603: [email protected]/20/25kHz ETSI: [email protected]/20/25kHz |
| Hum and Noise | [email protected], 43dB@20kHz, 45dB@25kHz |
| Rated Audio Power Output | 0.5W |
| Rated Audio Distortion | ≤3% |
| Audio Response | +1 to -3dB |
| Conducted Spurious Emission | <-57dBm |
| RF Power Output | VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W |
| FM Modulation | 11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz |
| 4FSK Digital Modulation | 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW |
| Conducted/Radiated Emission | -36dBm 1GHz |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz |
| FM Hum and Noise | 40dB @ 12.5kHz, 45dB @ 25kHz |
| Adjacent Channel Power | 60dB @ 12.5kHz, 70dB @ 25kHz |
| Audio Response | +1 to -3dB |
| Audio Distortion | ≤3% |
| Digital Vocoder Type | AMBE+2TM |
| UL913 Certification for Radios, Batteries and Accessories | Class I, II, III, Division 1, Groups C-G,T4, -30° to 60°C / Class I, Division 2, Groups A-D,T4, -30° to 60°C |
| Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Storage Temperature | -40°F to +185°F (-40°C to +85°C) |
| ESD | IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air |
| Dust and Water Ingress IP68 Standard | IP68 Standard |
| Humidity Per MIL-STD-810 C/D/E/F/G Standard | Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G Standard |
