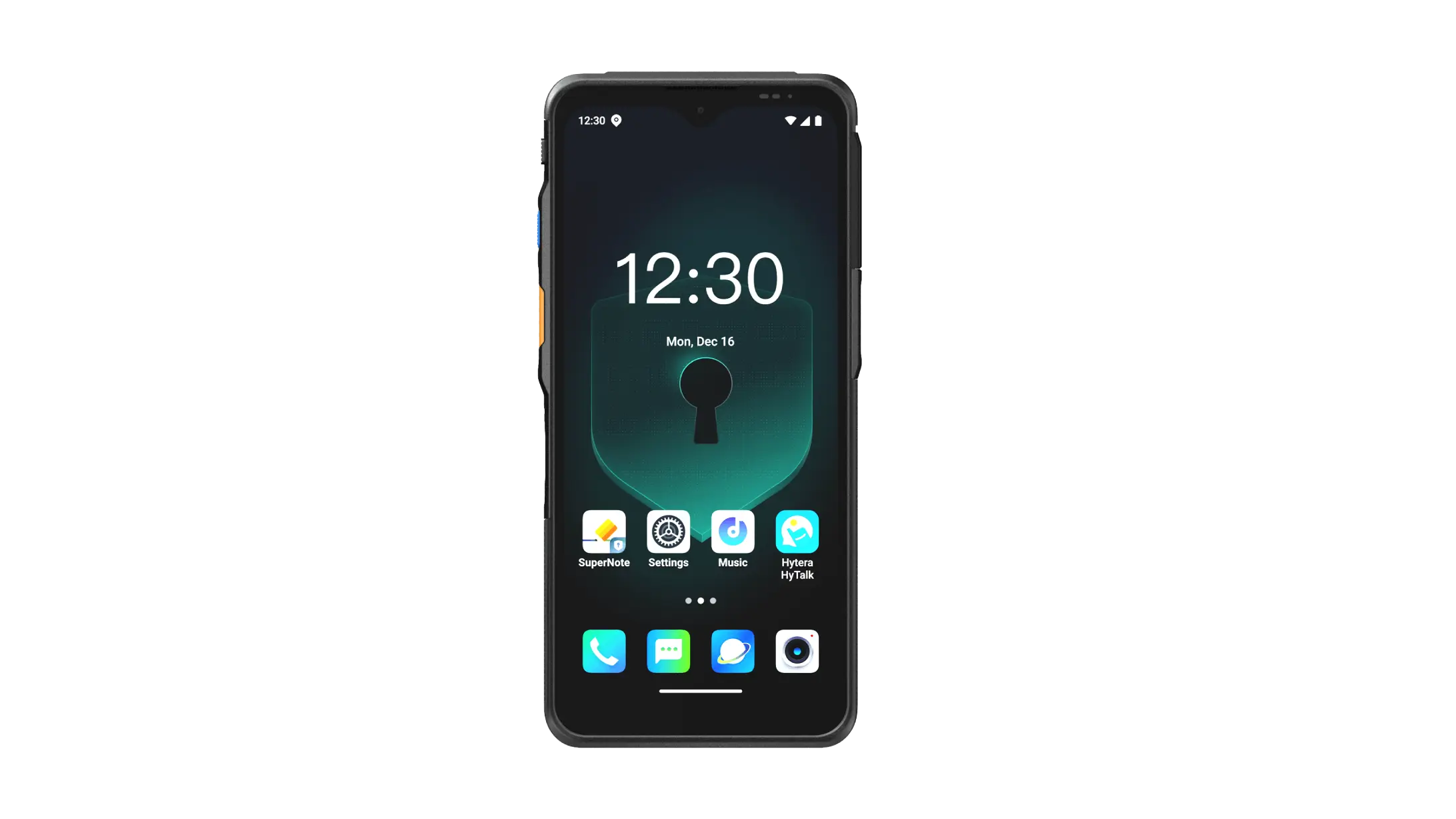

PNC660
Mission Critical Ruggedized Device
HandheldLTE/5GGPS
The PNC660 integrates cutting-edge hardware with top-tier security features, ensuring instant and reliable 5G communication. This terminal is equipped with an independent security chip that complies with the CC EAL standard, combined with a comprehensive security solution for robust protection in high-sensitivity scenarios. Conforming to the 3GPP R15 standard, it guarantees high reliability for critical mission communications. Its intuitive design, deeply integrated with industry applications, streamlines processes and enhances both efficiency and usability.
Key Features
MCX Service
Unmatched Security
Powerful Performance
Personnel Safety
User-centric Design
Rugged Durability
Technical Specifications
| LTE | 2G: 850/900/1800/1900; WCDMA: B1/B2/B4/B5/B8; LTE-FDD/TDD + NR full listed bands |
| WLAN | Support 802.11 a/b/g/n/ac/ax/e/k/r/v; Wi-Fi 6E; Wi-Fi 5; hotspot; 2*2 MIMO |
| NFC | Support |
| Positioning | AGPS (L1 & L5 Dual-frequency) |
| Dimensions (H×W×D) | 166.6mm x 77.6mm x 14.3mm |
| Weight | 280g |
| Operating System | Android 14 |
| Processor | 8-Core Processor & Independent Security Encryption Chip |
| Memory | RAM: 8GB, ROM: 128GB/256GB, Micro SD up to 1024GB |
| Display | 6.3-inch FHD 1080×2340 waterdrop display, wet-hand and glove mode |
| Card Slots | Nano ×2 + eSIM |
| Video Resolutions and Frames Per Second | 4K @ 30fps |
| Input | 2 (Dual-Mic Noise Reduction) |
| Output | 2 speakers, loudness 102dB@5cm |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +70℃ |
| Dust & Water Protection | IP68 |
| Vibration, Drop & Shock | 1.5m |
