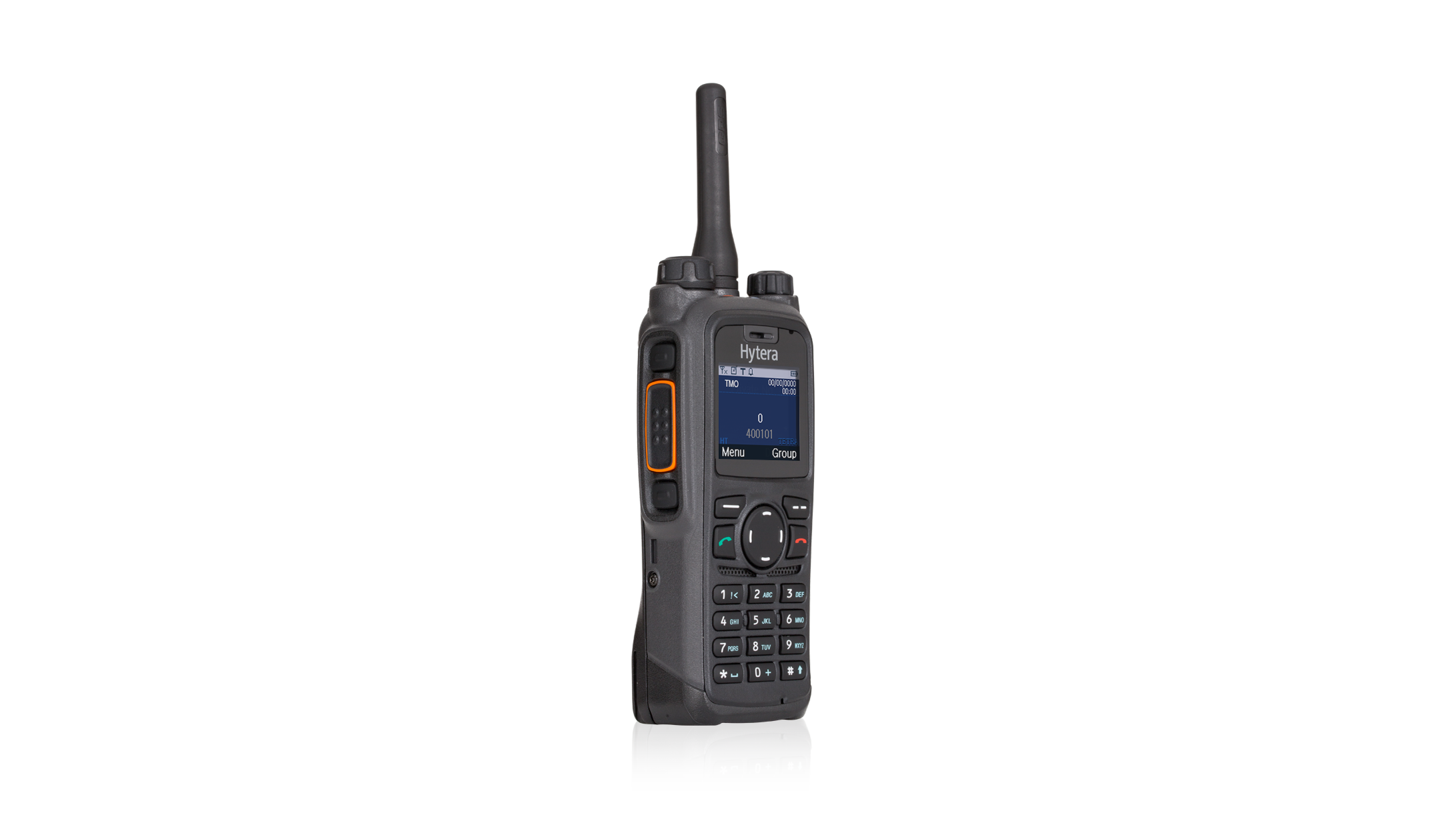

PT580H Plus
Mission Critical TETRA Portable Radio
PT580H Plus Mission Critical TETRA Portable Radio is engineered to facilitate reliable and secured communications from first responders. The IP68-rated protection makes it weatherproof and users such as firefighters can bring it anywhere anytime. With its advanced noise canceling technology and 3-watt high-power design, PT580H Plus delivers clear voice calls amid noises across a wide range. Both algorithm and hardware encryption are adopted to secure voice and data transmission.
Key Features
Rugged and Durable
The PT580H Plus is designed to meet ETSI30019-1-7, MIL-STD-810 F/G, and IP68 standards, and it has passed Hytera's ALT test, ensuring reliable operation in the harshest conditions.
Extended Coverage
With a 3-watt RF output power, the PT580H Plus significantly improves signal coverage in challenging environments such as underground buildings.
Superior Audio
New noise cancellation and echo suppression technologies ensure exceptional voice clarity even in noisy environments, enabling precise command transmission.
Secure Communications
Built-in hardware encryption and sophisticated encryption algorithms provide strong protection for voice and data privacy.
Accurate Positioning
With advanced positioning chips, the PT580H Plus supports GPS, GLONASS, and BDS for fast and precise location tracking.
Technical Specifications
| Frequency Range | 320-380 MHz; 380-430 MHz; 405-475 MHz; 806-870 MHz |
| Dimensions(H×W×D) mm | 127.5 mm × 55 mm × 36.5 mm（with 1800 mAh standard battery); 127.5 mm × 55 mm × 39.5 mm (with 2500 mAh option battery) |
| Weight | 368 g （with 1800 mAh standard battery and antenna） |
| Operating Voltage | 7.4 V |
| Battery | Standard: Li-Ion 1800 mAh;Optional: Li-Ion 2500 mAh |
| Battery Life (TMO 5/5/90 duty cycle) | >20 Hours (1800 mAh); >27 Hours (2500 mAh) |
| Display | 1.8 inch，160*128 pixels，262144 colors |
| Talk Group-TMO | 6000 |
| Talk Group-DMO | 4000 |
| Telephone book | 2000 |
