Analog Two-way Radio
Affordable & Reliable
radio

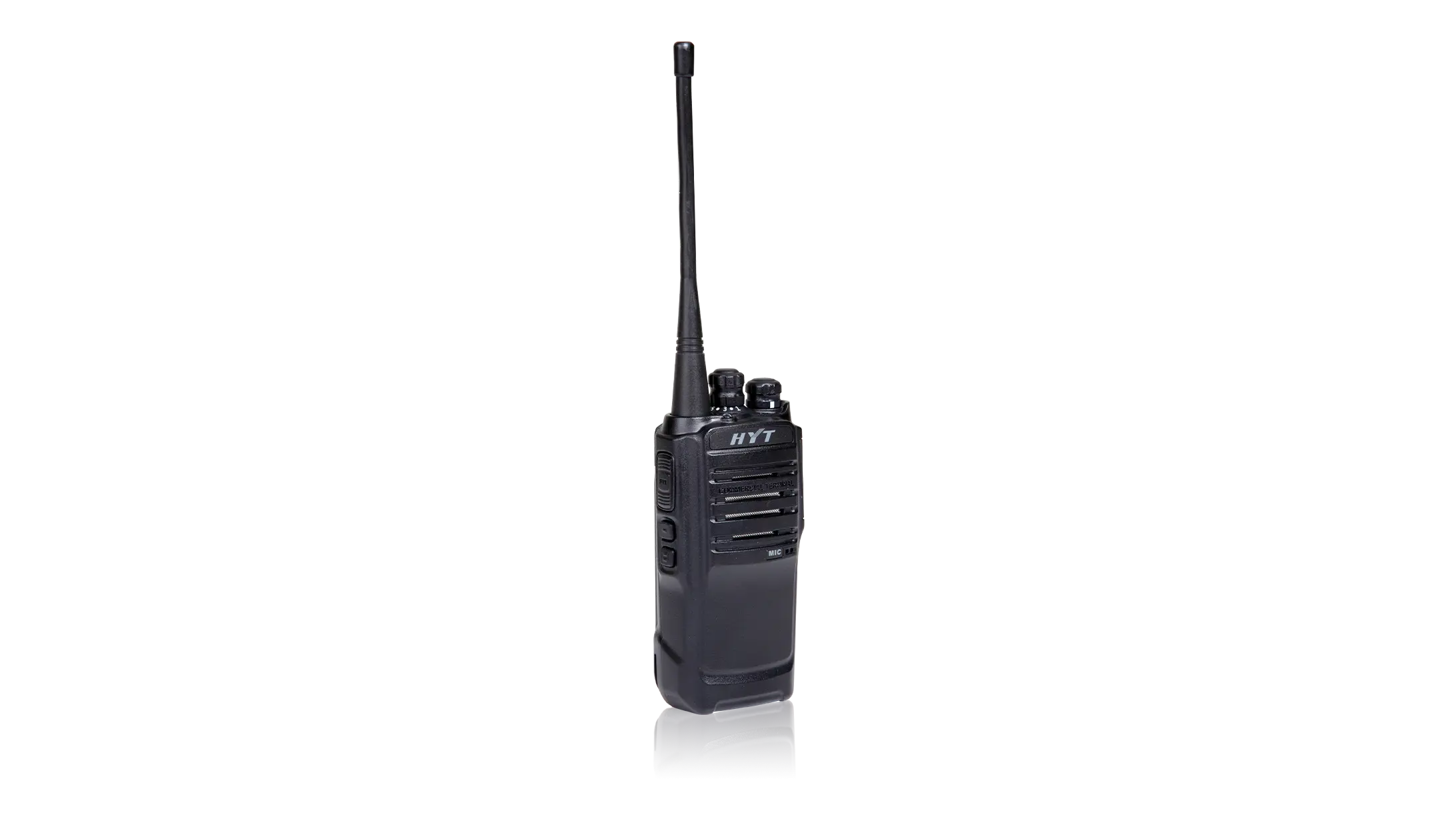

TC-508, one of the market-leading products in HYT commercial
Key Features
Tough & Light-weight
TC-508 has a light-weight but exceptionally strong body, allowing it to be carried about easily and to survive harsh conditions.
Longer Battery Life
TC-508 is equipped with a 1650mAh battery that enables you to transmit and receive, on a 5-5-90 basis, for up to 14 hours. It provides long-lasting performance and convenience.
Robust & Reliable
TC-508 is built to survive the hard knocks, drops and some tough environments of its users. It meets or exceeds the HYT 5-year ALT test.
Enhanced Voice Quality
TC-508 employs advanced voice technologies to better the sound quality during your communication.
Technical Specifications
| Sensitivity | ≤0.251µV / 0.282µV |
| Adjacent Channel Selectivity | 65dB / 55dB |
| Intermodulation | 60dB |
| Spurious Response Rejection | 65dB |
| S/N | 45dB / 40dB |
| Rated Audio Power Output | 0.5W (Speaker impedance: 16 Ohm) |
| Rated Audio Distortion | ≤5% (0.5W) |
| Conducted Spurious Emission | -57dBm < 1GHz; -47dBm > 1GHz |
| Power Output | 5W/2W (VHF); 4W/2W (UHF) |
| Modulation | 16K0F3E / 11K0F3E |
| Spurious and Harmonics | ≤ -26dBm (<1G) |
| FM Noise | 40 / 35dB |
| Audio Distortion | ≤5% |
| Modulation Limiting | ≤5KHz (25KHz); ≤2.5KHz (12.5KHz) |
| Audio Response | ≤+1~-3dB (6dB/oct pre-emphasized, 300-3000Hz) |
| Dust and Water Ingress | IP54 Standard |
| Shock and Vibration | Per MIL-STD-810 C/D/E/F/G |
