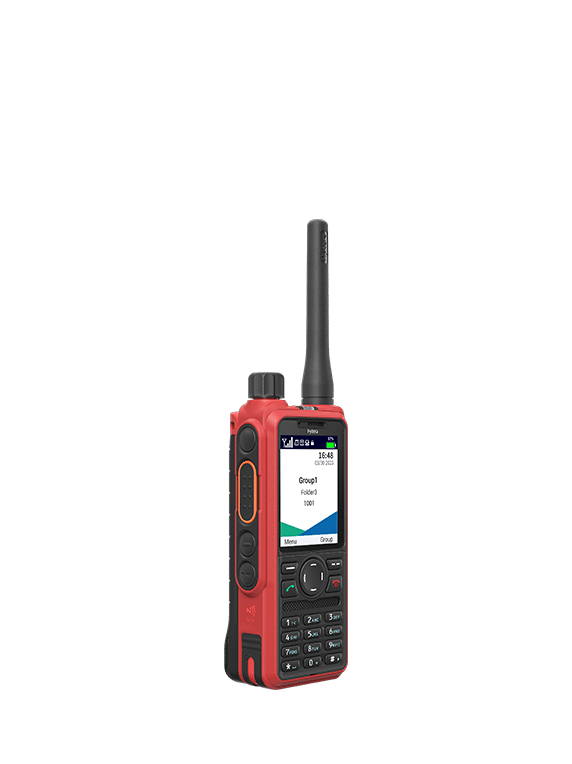

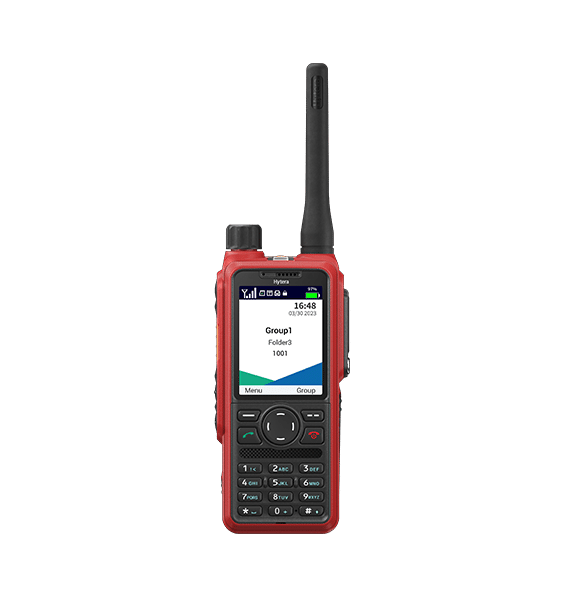

PT890Ex Intrinsically Safe TETRA Portable Radio
PT890Ex Intrinsically Safe TETRA Portable Radio
PT890Ex Intrinsically Safe TETRA Portable Radio features a secure design, durable body, and advanced ergonomics. PT890Ex provides clear and loud voice quality, extended working hours, and long-distance communication capabilities. Compliant with stringent IECEx explosion-proof standards, it holds IECEx international certifications. This design meets global explosion-proof certification standards, providing reliable safe communication for industries such as oil and gas, fire rescue, airports, manufacturing, and more.
Key Features
ESSENTIAL CERTIFICATIONS
Through the rigorous testing of the globally recognized certification organizations, PT890Ex obtains the IECEx/ATEX certificates, to reduce the risk of accidents, and ensure the safety of users and operators.
ROCKSOLID & LONG LASTING BATTERY
Designed with a high-grade battery protection board and a novel battery lock , PT890Ex avoid potential sparks even dropped accidentally, and ensures the safe use of the battery in hazardous circumstances. Additionally, the battery of PT890Ex has anti-counterfeiting identification function, effectively addressing the safety risks of non-original batteries. It also adopts a large-capacity intelligent IS battery and power-saving technology design to reduce standby power consumption, meeting the need for extended communication, and allowing seamless shift changes.
VERSATILE CONNECTIVITY
Supports Bluetooth 5.3, WLAN, and NFC functionalities, allowing for the expansion of third-party application solutions, enabling remote and tag management of radios, ensuring efficient terminal management.
EASY TO USE
User-friendly UI design, upgraded 2.4-inch screen, and multifunctional buttons, along with large LED indicator lights, providing a comfortable viewing experience, convenient operation, and doubled efficiency.
CLEAR AND LOUD VOICE
With a 2W high-power speaker, the audio is louder. Integrated with AI intelligent noise reduction algorithm, automatic gain control (AGC), and other multiple audio technologies, PT890Ex isolates kinds of noisy backgrounds, and addresses weak sound issues, to make critical voice information clearer and more reliable.
EXTENDED COVERAGE
Class 3L transmission power extends the coverage area. Even in remote areas, critical information can be received, reducing coverage blind spots, enabling rapid response, and collaborating timely handling of critical tasks.
BUILT FOR PERSONNEL SAFETY
Optional standalone mode settings. In case of danger, the PT890Ex will activate the man-down alarm function, precisely sending location details to protect the personal safety of team members.
WIDER RANGE OF OPERATION TEMPERATURE (IN EX AREA)
Thanks to new explosion-proof materials and advanced mechanical design, the PT890Ex is built to work under temperatures from –25°C to 60°C in explosion-prone areas. With stable and even heat dissipation, the PT890Ex is engineered to work in extreme conditions, bringing extra safety and efficiency to everyday work.
Technical Specifications
| Frequency Range | 380–475 MHz; 806–870 MHz |
| Dimensions (H x W x D) | 130 mm x 55 mm x 37 mm |
| Weight (with antenna and battery) | About 390 g (with standard battery and antenna) |
| Channel Spacing | 12.5kHz/20kHz/25kHz |
| Operational Voltage | 7.4 V DC |
| Battery | Standard: 2150 mAh IIC explosion-proof Li-ion battery |
| Display | 2.4 inches, 320 x 240 pixels |
| Bluetooth | BT 5.3 |
| Anti-explosion levels | IECEx: Ex ib I Mb/Ex ib IIC T4 Gb/Ex ib IIIC T120°C Db/Tamb = -25°C to +60°C/IP66 IP67 IP68; ATEX: I M2 Ex ib I Mb/II 2G Ex ib IIC T4 Gb/II 2D Ex ib IIIC T120°C Db/Tamb = -25°C to +60°C/IP66 IP67 IP68; USA: CL I, ZN 1, AEx ib IIC T4 Gb/ZN 21, AEx ib IIIC T120°C Db/Tamb = -25°C to +60°C/IP66 IP67 IP68; CA: Ex ib IIC T4 Gb/Ex ib IIIC T158°C Db/Tamb = -25°C to +60°C/IP66 IP67 IP68 |
| Talk Group-TMO | 12000 |
| Talk Group-DMO | 6000 |
| Telephone book | 5000 |
| Inbox | ≤500 entries |
| Outbox | ≤500 entries |
| Drafts | ≤500 entries |
| Folder-TMO | 200 |
| Folder-DMO | 50 |
| State Message | 200 |
| RX Sensitivity | Acquisition ≤ –149 dBm; Tracking ≤ –165 dBm |
| Time to First Fix Cold Start | <35 Seconds |
| Time to First Fix Hot Start | <1 Seconds |
| Horizontal Accuracy | <1.0 m (95% probable, –130 dBm) |
| Note | GPS, BDS, GLONASS, Galileo |
| Channel Bandwidth | 25 kHz |
| RF Power Output | Class 3L (max) |
| RF Power Level Accuracy | ± 2 dB |
| RF Power Control | 5 dB per step |
| Receiver Class | ETSI EN 392-2/396-2 Class A and Class B |
| RX Sensitivity(Static) | ≤-118 dBm (typical: -120 dBm) (for 380-475 MHz); ≤-117 dBm (typical: -119 dBm) (for 806-870 MHz) |
| RX Sensitivity(Dynamic) | ≤-108 dBm (typical: -110 dBm) (for 380-475 MHz); ≤-107 dBm (typical: -109 dBm) (for 806-870 MHz) |
| Operating Temperature | –30°C to +60°C (in non-Ex area); –25°C to +60°C (in Ex area) |
| Storage Temperature | -40°C~+85°C |
| Dust and Water Ingress IP68 Standard | IP64/IP65/IP66/IP67/IP68 IEC-60079-0:2017 & IEC-60529 |
| Humidity Per MIL-STD-810 C/D/E/F/G Standard | 0.95 |
| Shock and Vibration | MIL-STD-810 HETSI EN 300 019-1-7 5M3 |
